XRB10

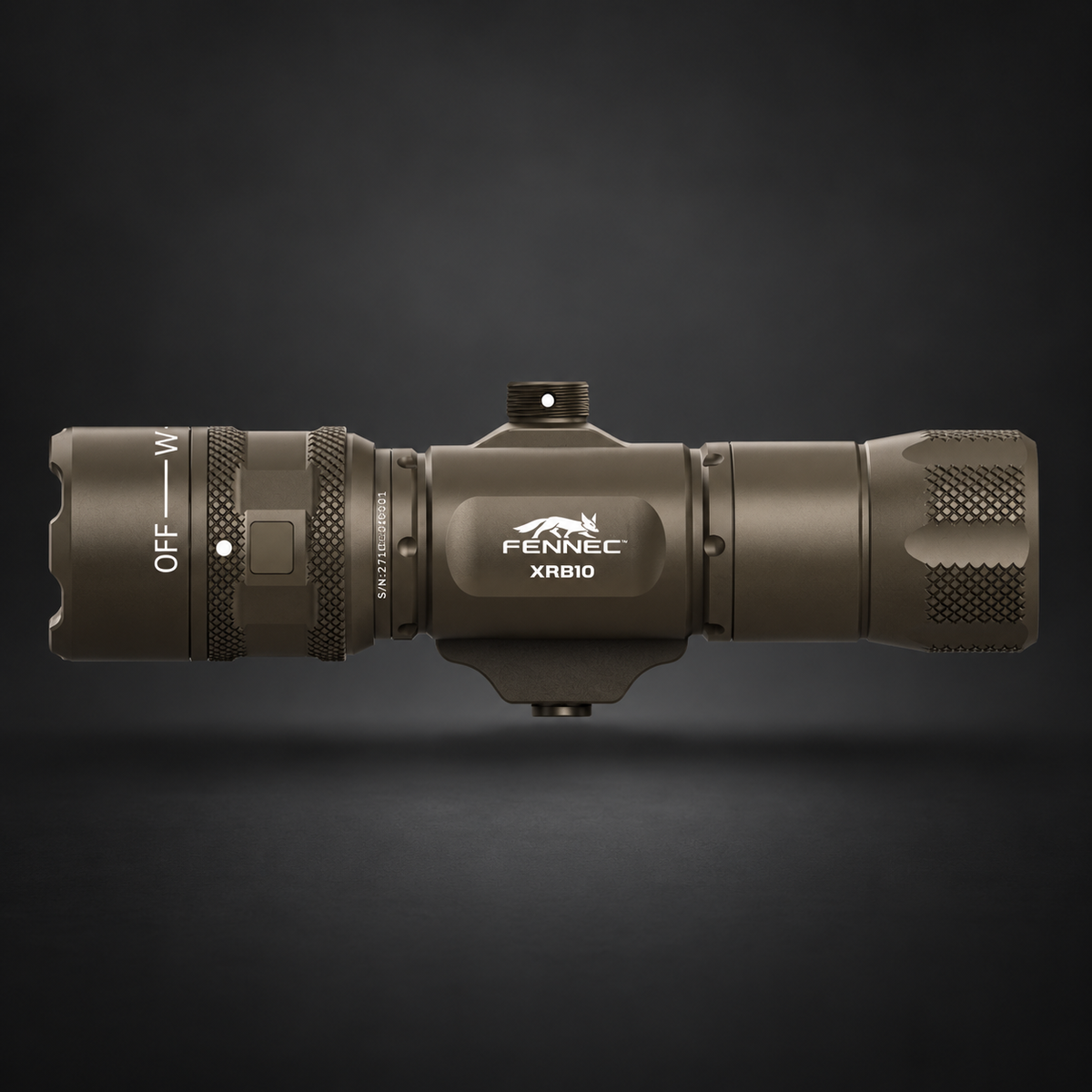

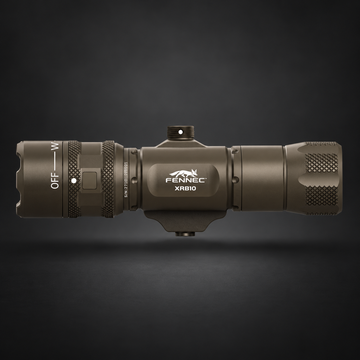

FENNEC DARKLINE XRB10 | White + 850 nm IR Weapon-Mounted Light

1,030 lumens · 220 m beam · 850 nm infrared · Picatinny mount · Brown

The FENNEC DARKLINE XRB10 pairs a 1,030-lumen white LED with an 850 nm infrared emitter in one compact 6061-T6 aluminum body. A rotating OFF / W / IR selector chooses the light source, with control through the two-stage tail switch or the included remote pressure switch. The integrated mount is designed for MIL-STD-1913 Picatinny rails. Confirm available rail space and clearance for your setup.

Available in Brown and Black. Both colors share the same output, controls and construction.

WHITE LIGHT + 850 NM INFRARED

High delivers 1,030 lumens and 12,400 cd for a beam that reaches up to 220 m (240 yd). Low gives 150 lumens for close work, and Strobe runs at full output. Switch the selector to IR and the 850 nm emitter lights the scene for compatible night-vision devices without producing a conventional white-light beam. A faint red glow may be visible at the emitter; IR mode is not completely invisible. Constant IR switches off automatically after 30 minutes.

OFF / W / IR SELECTOR

The rotating selector ring on the head locks in your light source. W enables white-light controls, IR enables the infrared emitter and OFF disables every switch input, so the light can't be turned on accidentally during transport or storage.

TWO SWITCHES. YOUR CHOICE.

The two-stage tail switch gives momentary Low on a half-press and momentary High on a full press. Double-press for constant-on or double-press and hold for Strobe. The tactical remote pressure switch plugs into the tail port for activation from your support hand, and both switches stay connected and ready to use.

PICATINNY RAIL MOUNT

The integrated mount fits MIL-STD-1913 Picatinny rails and locks down with a single thumb screw. Seat it in a rail slot, align the locking tab and tighten. Recheck the mount after installation and after every range session.

BUILT FOR HARD USE

The body is machined from 6061-T6 aircraft aluminum with a hard-anodized brown finish, sealed to IP68 and tested for 1.5 m impact resistance. Knurled grip sections on the selector ring and tailcap give a sure hold with or without gloves.

OUTPUT & RUNTIME

Approximate laboratory values with two CR123A batteries. The 30-minute IR value is the automatic shutoff for constant-on IR, not a battery-runtime rating. Results vary with battery condition and environment.

SPECIFICATIONS

• Series / model: FENNEC DARKLINE XRB10 (model 272), Brown
• Light sources: High-power white LED, 6500 K; 850 nm infrared LED
• Maximum output: 1,030 lumens
• Peak intensity / beam: 12,400 cd / up to 220 m (about 240 yd)
• Modes: High, Low, Strobe, IR (momentary and constant)
• Runtime: up to 6 h 11 min (Low)
• Batteries: 2 × Panasonic CR123A (included, packed separately)
• Charging: No onboard charging
• Controls: Two-stage tail switch, tactical remote pressure switch, OFF / W / IR selector ring
• Mount: MIL-STD-1913 Picatinny rail, thumb-screw lock
• Water / impact: IP68 / 1.5 m
• Body: 6061-T6 aluminum, hard-anodized brown finish
• Dimensions: 130 × 42.5 × 38.9 mm (5.1 × 1.7 × 1.5 in)
• Weight: 165 g (5.8 oz) without batteries
• Warranty: FENNEC 5-year limited warranty

OPERATION

• Selector ring: OFF disables all switches; W enables white light; IR enables the 850 nm emitter
• White, tail switch: half-press for momentary Low, full press for momentary High
• Constant on: double full-press and release; press again to turn off
• Strobe: double full-press and hold
• IR, tail switch: half or full press for momentary IR; double full-press and release for constant IR (auto-off after 30 minutes)
• Remote pressure switch: single press for momentary High or IR; double press and release for constant-on; double press and hold for Strobe (white)

WHAT'S IN THE BOX

• FENNEC DARKLINE XRB10 weapon-mounted light, Brown (Picatinny rail mount installed)
• Tactical remote pressure switch
• 2 × Panasonic CR123A batteries (packed separately, not installed)
• User manual

FENNEC FIVE-YEAR WARRANTY

FENNEC covers the XRB10 against defects in materials and workmanship for five years from the original retail purchase. The remote pressure switch and included accessories are covered for one year. Proof of purchase is required. To make a claim, visit our warranty page.

SAFE USE

Unload and clear the firearm before mounting, removing or changing batteries. Never look into the white beam or view the IR emitter directly or through optics. Set the selector to OFF for transport and storage. Use only for lawful purposes and in compliance with local regulations.

FREQUENTLY ASKED QUESTIONS

What should I do before first use? The two CR123A batteries ship in the box, separate from the light. Set the selector ring to OFF, unscrew the tailcap, remove any insulating discs, insert both batteries with the positive (+) ends toward the head and tighten the tailcap fully.

Do I need night vision to use the IR mode? IR mode is intended for compatible night-vision devices. A faint red glow may be visible at the emitter. The separate white-light modes work without night vision.

Will it fit my rail? The XRB10 mounts to MIL-STD-1913 Picatinny rails. Check rail dimensions, available space and clearance before purchase; compatibility is not guaranteed for every configuration.

Does the XRB10 charge its batteries? No. The XRB10 has no onboard charging. Two Panasonic CR123A batteries are included. Do not attempt to recharge primary CR123A batteries or substitute rechargeable cells unless their type and voltage are expressly approved for this light. Use two matched batteries and do not mix new and used cells.

Why did the IR turn off by itself? Constant-on IR shuts off automatically after 30 minutes. Double-press the switch to turn it back on.
